Technical Specifications

Battery Charger Stand - Forklift Australia Material Handling

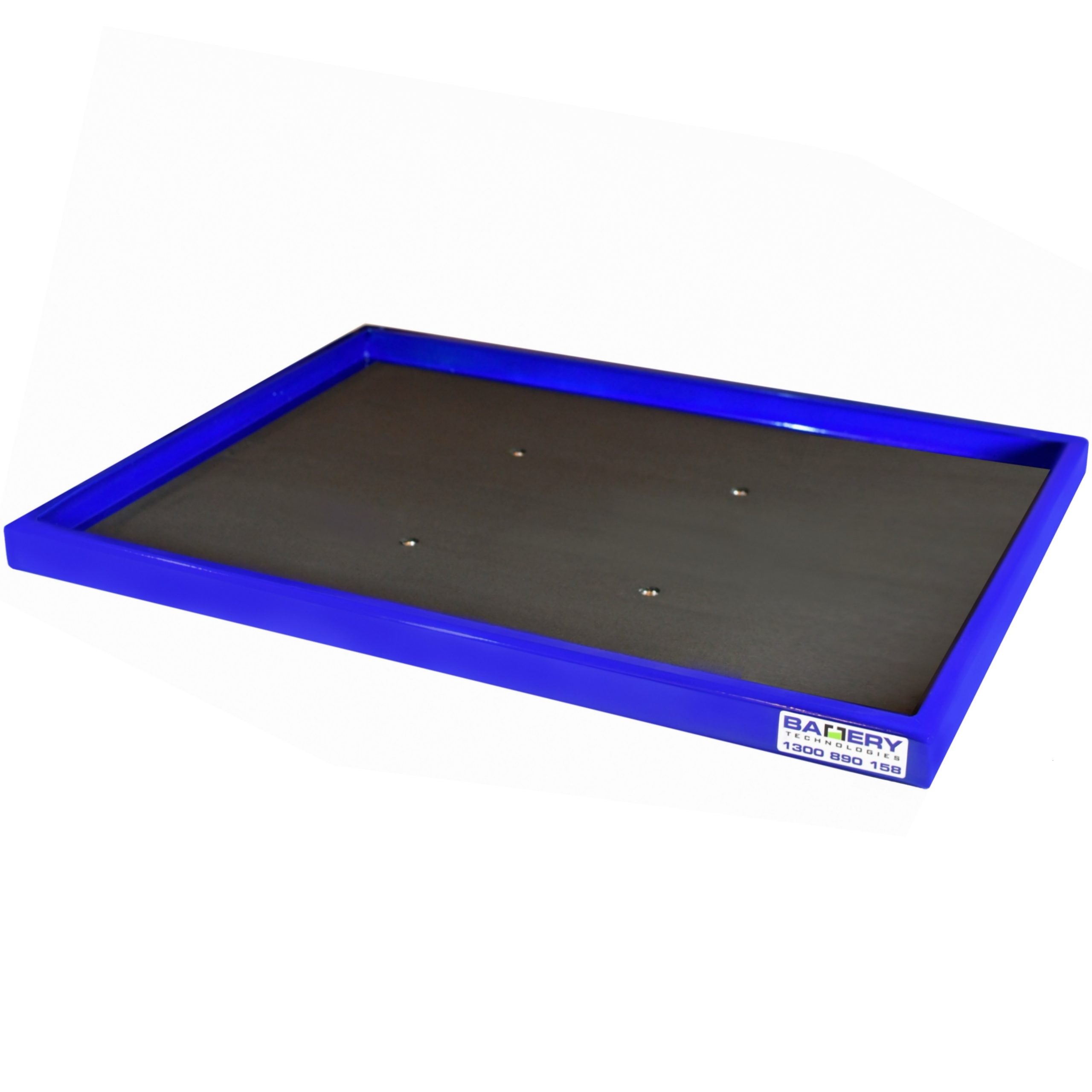

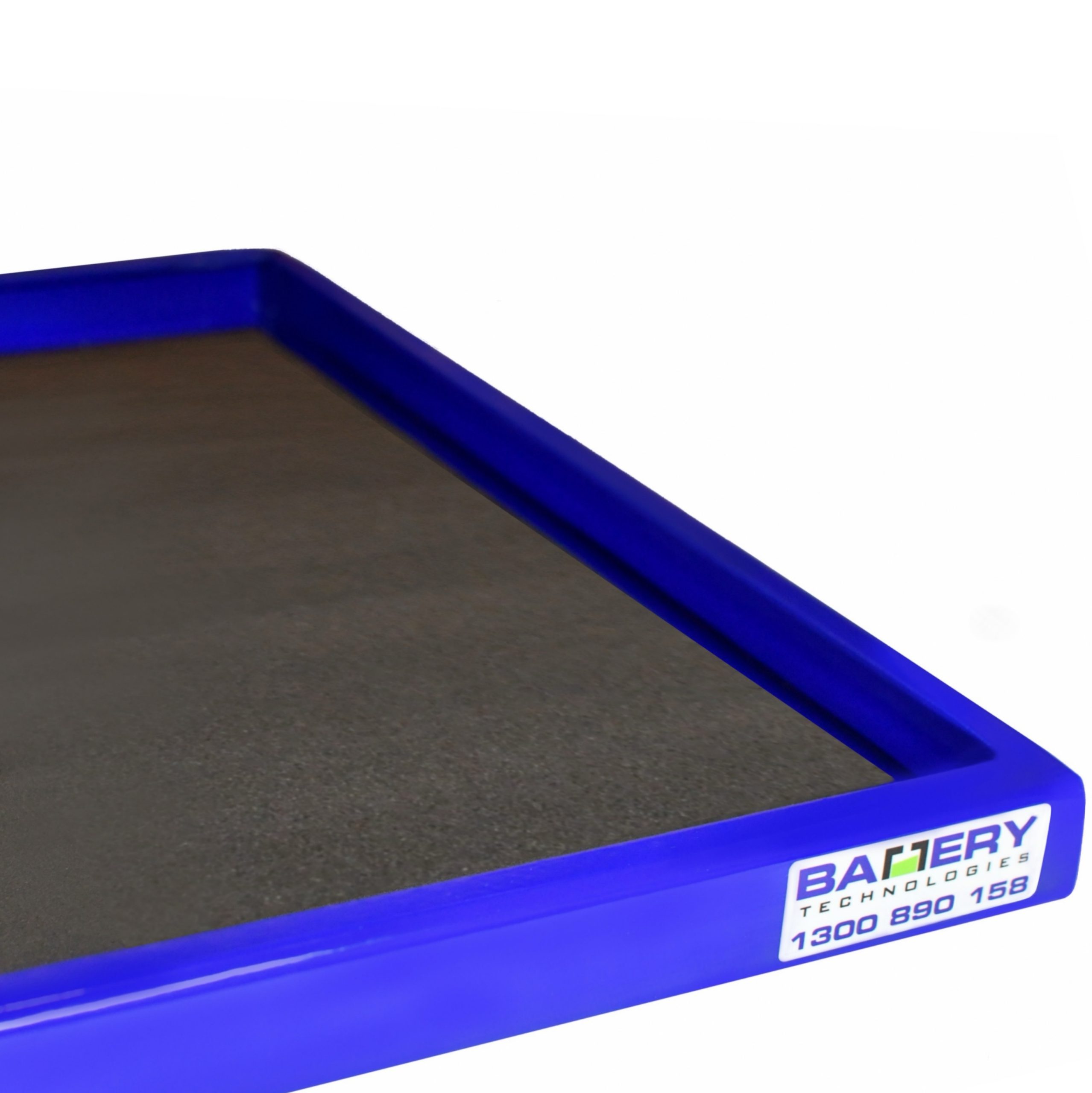

  • Top Tray:
    • Aluminium 3mm double folded sheet with fully welded corners
    • 3cm high sides to retain the Battery Charger
    • Inserted rubber matting to keep the Battery Charger from sliding
  • Centre Post:
    • 100cm high Aluminium SHS 100mm x 100mm x 3mm
    • Aluminium 6mm thick mounting plates welded top and bottom
  • Free Standing Base:
    • Aluminium 3mm folded sheet with fully welded corners covering cross braces
    • 2 x Aluminium RHS 50mm x 25mm x 3mm cross braces welded into position
    • 4 x rubber matting feet
  • Disassembled for flat pack shipping (Top Tray, Centre Pole and optional Free Standing Base)
  • Powder Coated: Space Blue
  • Weight capacity: Chargers up to 100kg
  • Approximate weight: 10kg per Charger Stand

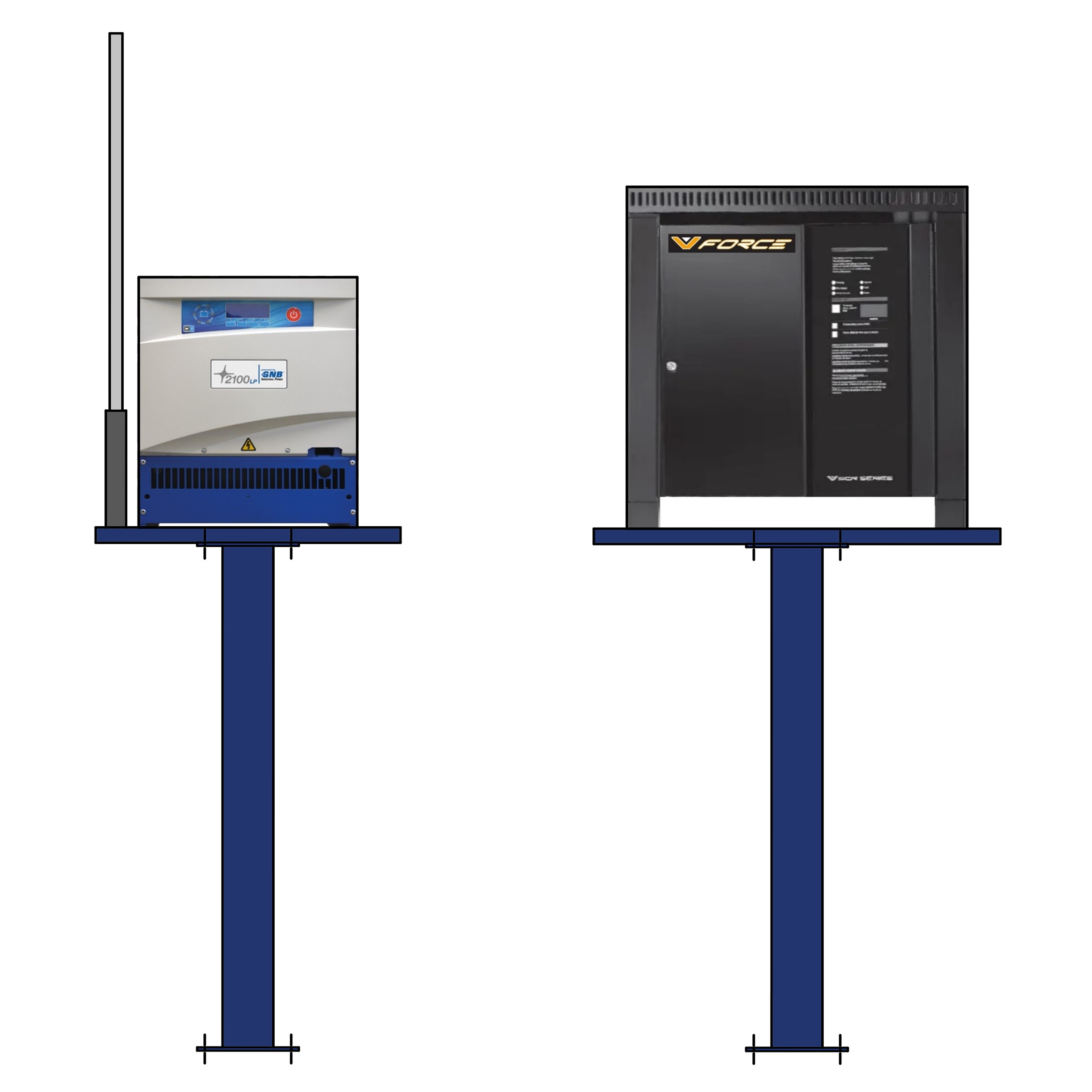

Two Sizes to Choose From

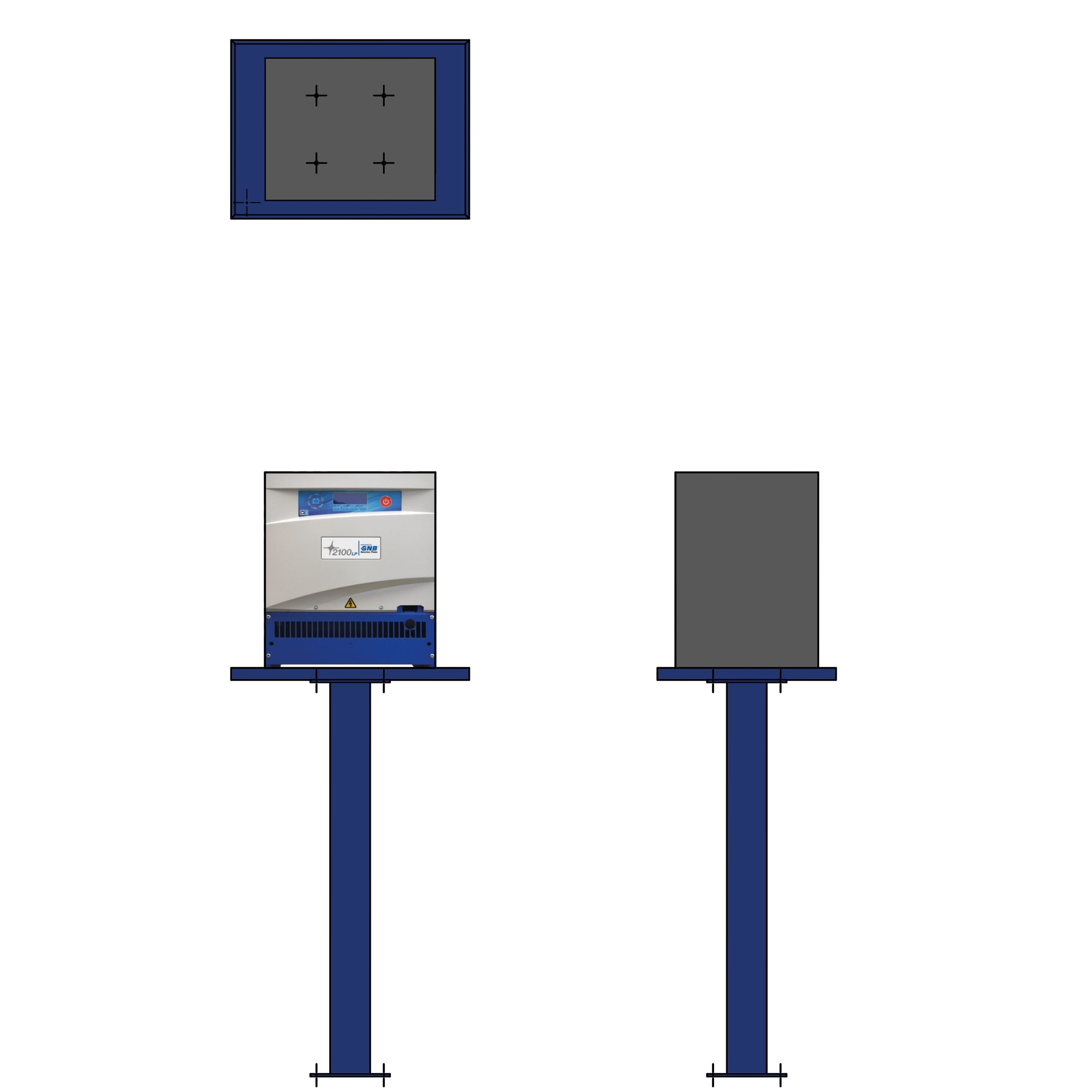

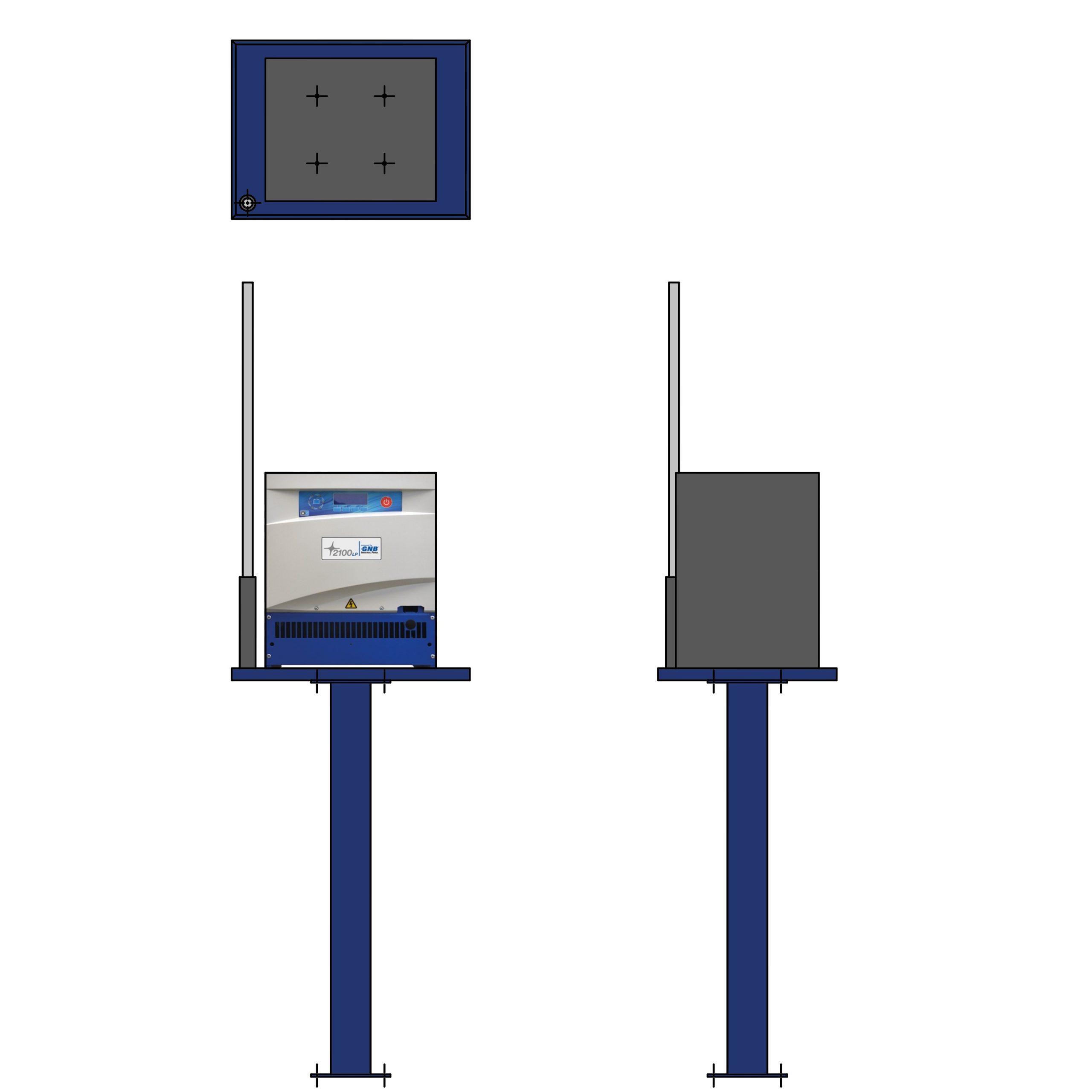

  • Medium Battery Charger Stand:
    • Outside Tray dimensions: 60cm x 45cm
    • Suits charger footprints up to: 53cm x 43cm OR 58cm x 38cm (OR 58cm x 43cm if no Pogo)

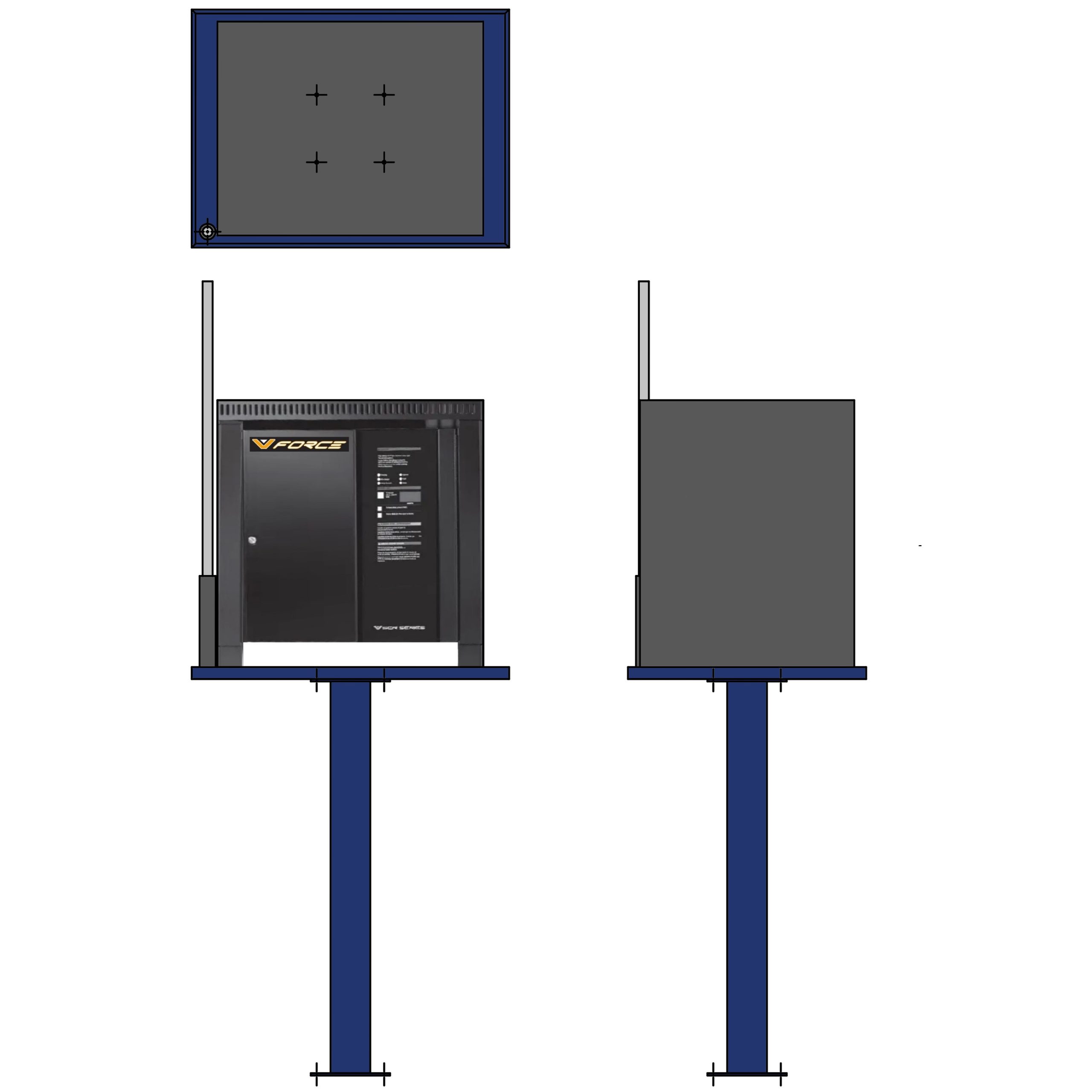

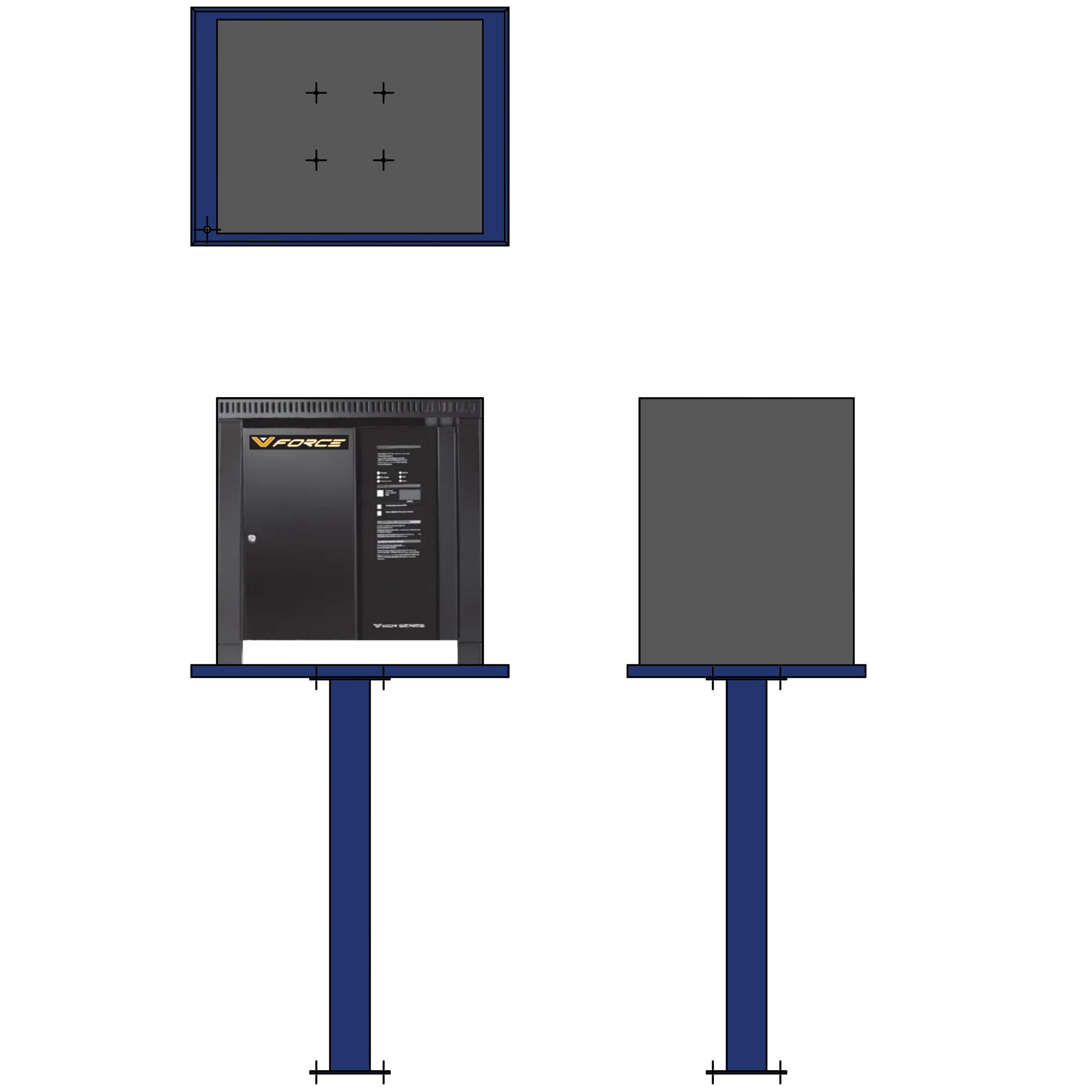

  • Large Battery Charger Stand:
    • Outside Tray dimensions: 80cm x 60cm
    • Suits charger footprints up to: 73cm x 58cm OR 78cm x 53cm (OR 78cm x 58cm if no Pogo)

Flexible Mounting Options

  • Both Versions:
    • Top Tray bolts to Centre Pole with 4 x Stainless Steel M8 Countersunk Socket Screws (included)
  • Bolt Down Version:
    • Centre Pole bolts down to Concrete Floor with 4 x Zinc Plated M8 Masonry Bolts (included)
  • Free Standing Version:
    • Centre Pole bolts to Base Plate with 4 x Stainless Steel M8 Pan Head Bolts (included)
    • Base Plate has 4 Rubber Feet
    • Base Plate sits on Concrete Floor
  • Future flexibility:
    • Common Top Tray
    • Common Centre Pole
    • Interchangeable Base (Bolt Down or Free Standing both have same hole pattern for future flexibility)

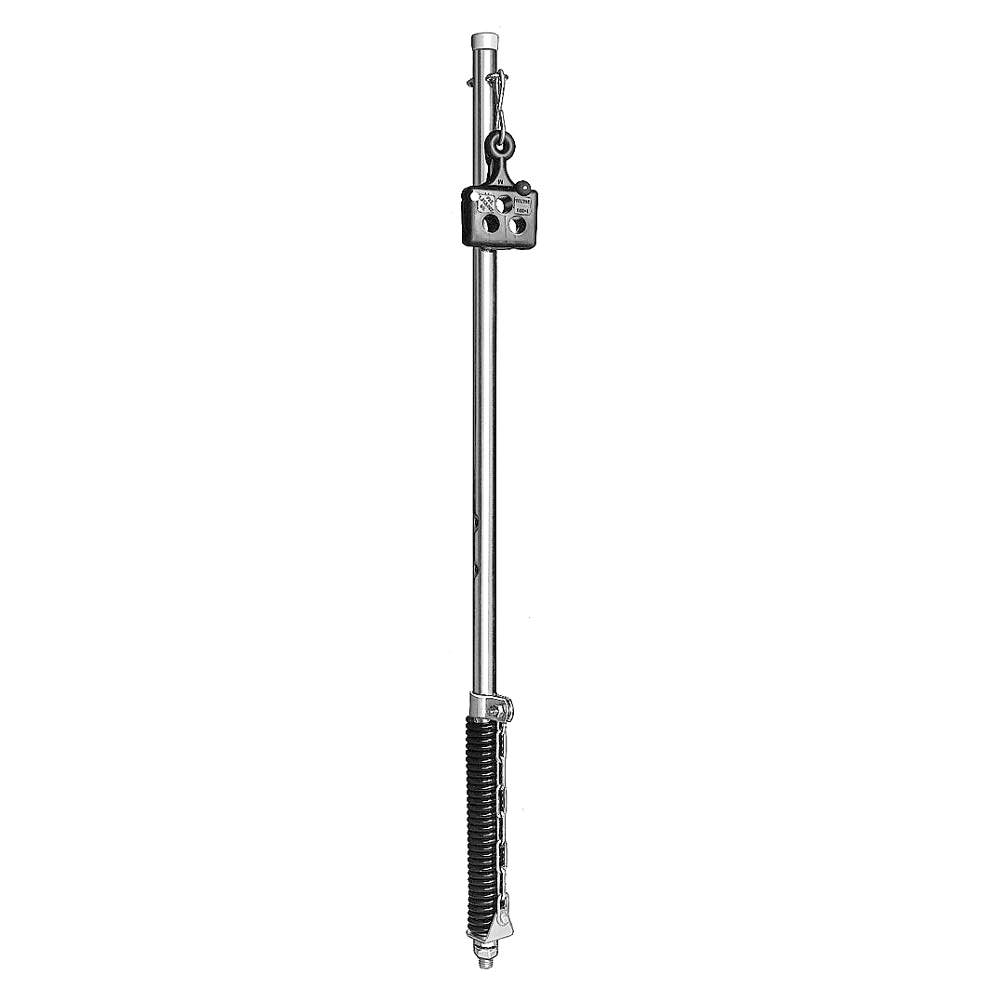

Optional Pogo Stick

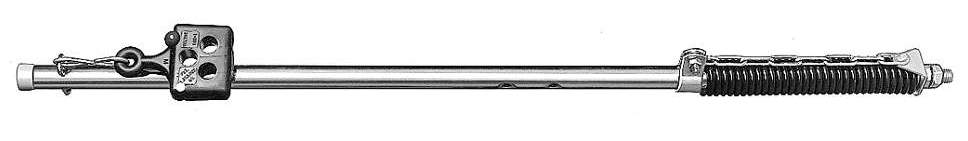

VELVAC 581040 Cable Minder Pogo Stick Stainless Steel Spring Australia Battery Charger

Prevent cable damage with an optional Velvac Cable Minder Pogo Stick.  The perfect solution to keeping your DC cables off the floor.

  • Brand: Velvac
  • Model: 581040
  • Material: Durable, zinc-plated steel body
  • Spring Base: Heavy-duty, polyester-coated, oil tempered steel spring can withstand 90° bend from vertical
  • Snubber chain: Helps prevent pogo stick from coming in contact with battery charger
  • Cable Suspender: Acid Resistant Rubber Triple Clamp provides excellent support for electrical cables and water tubes
  • Attachment: 5/8″ x 11 TPI UNC Coarse threaded rod base with hex nut
  • Length: 41″ (105 cm)
  • Weight: 2.5 kg
