Technical Specifications

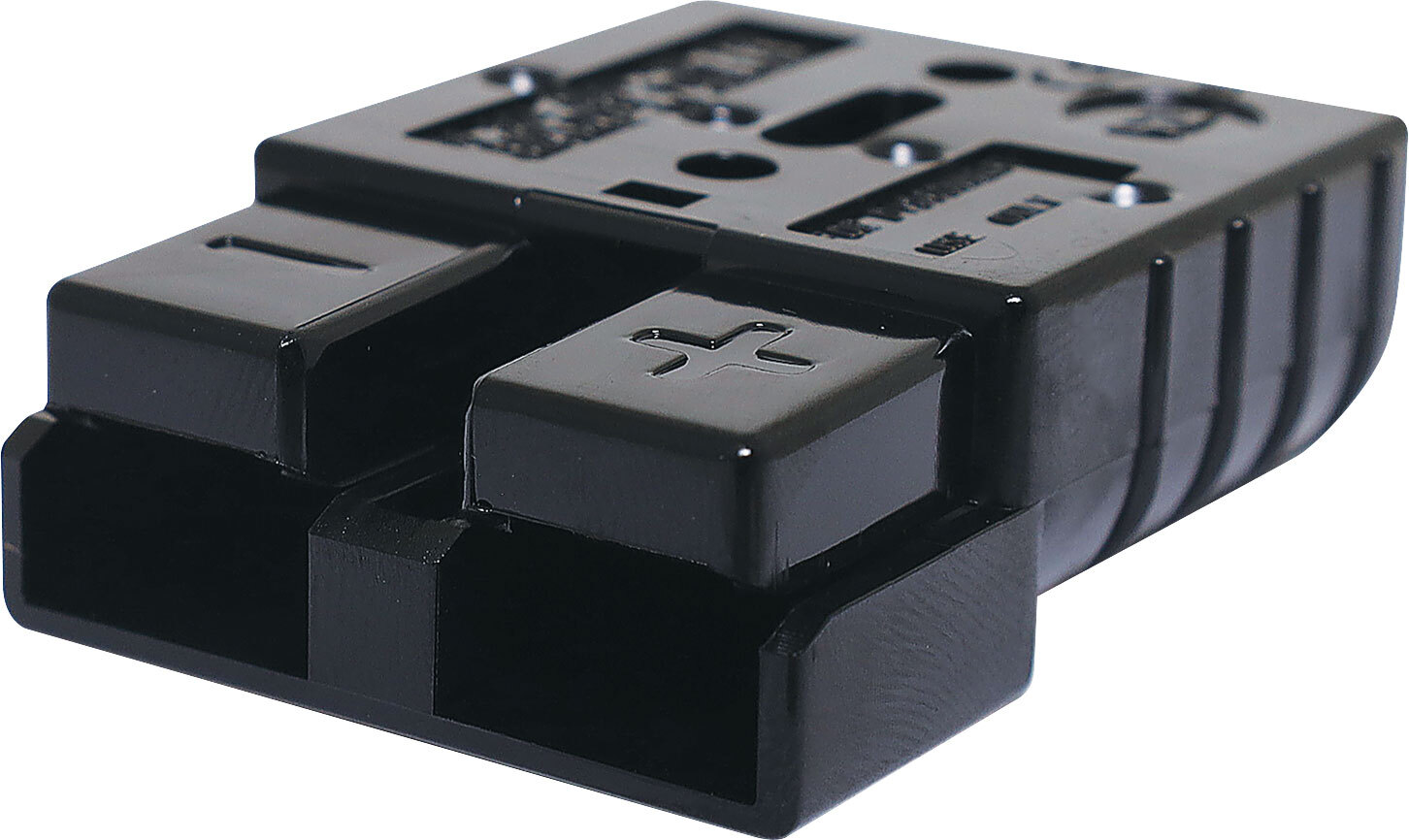

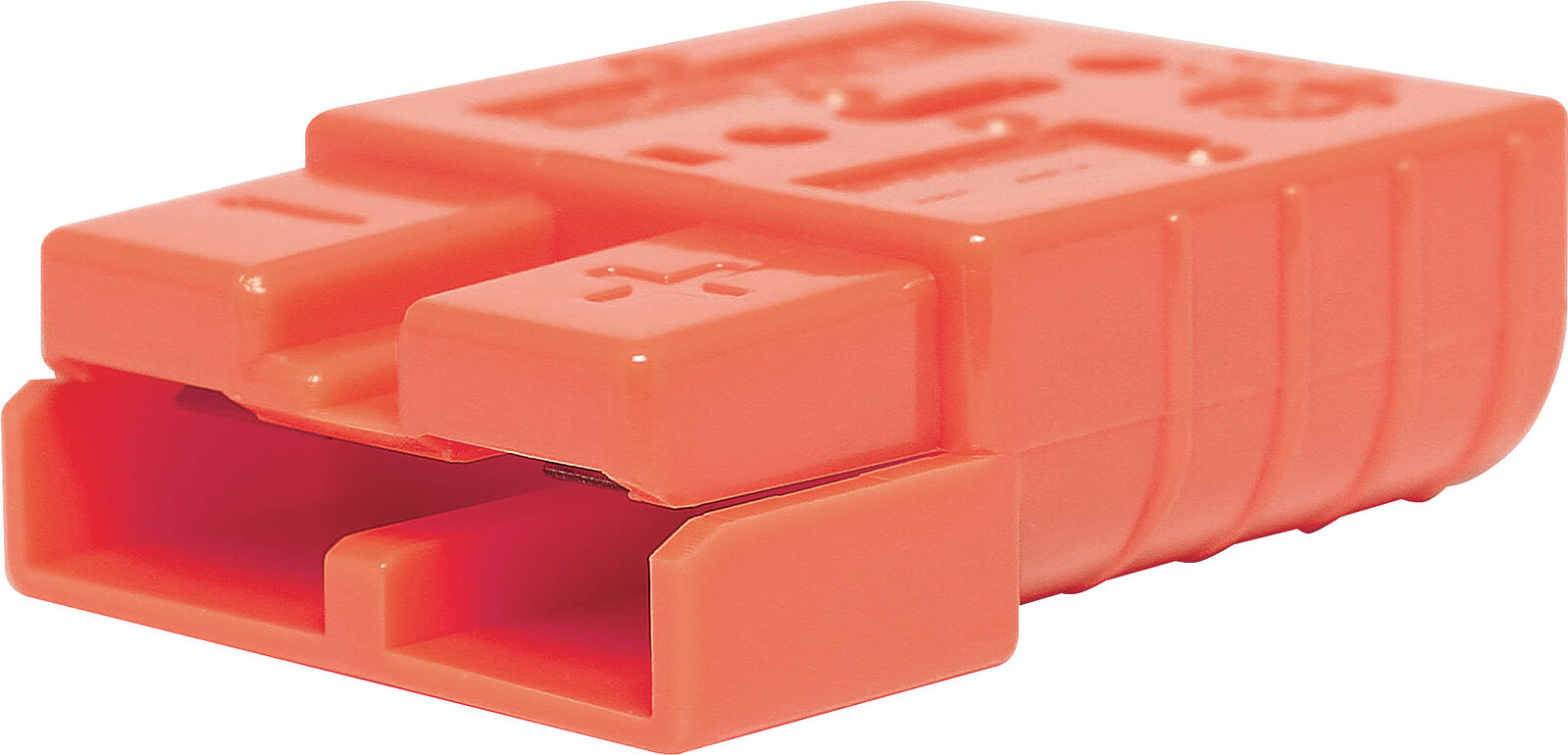

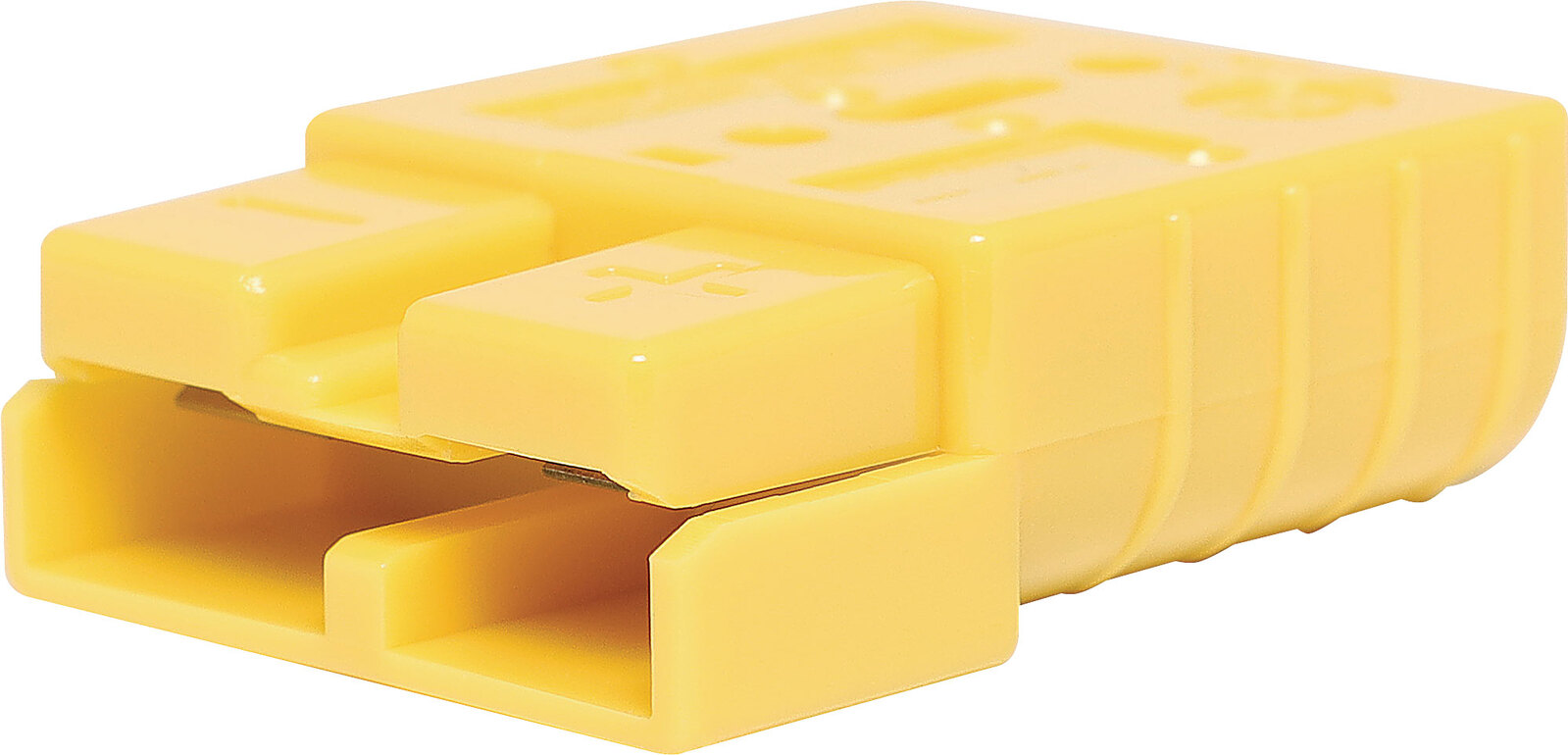

Genuine Anderson® Power SB350 DC Connector. These heavy duty DC plugs a reversible gender design (the same plug can be used as both male and female).

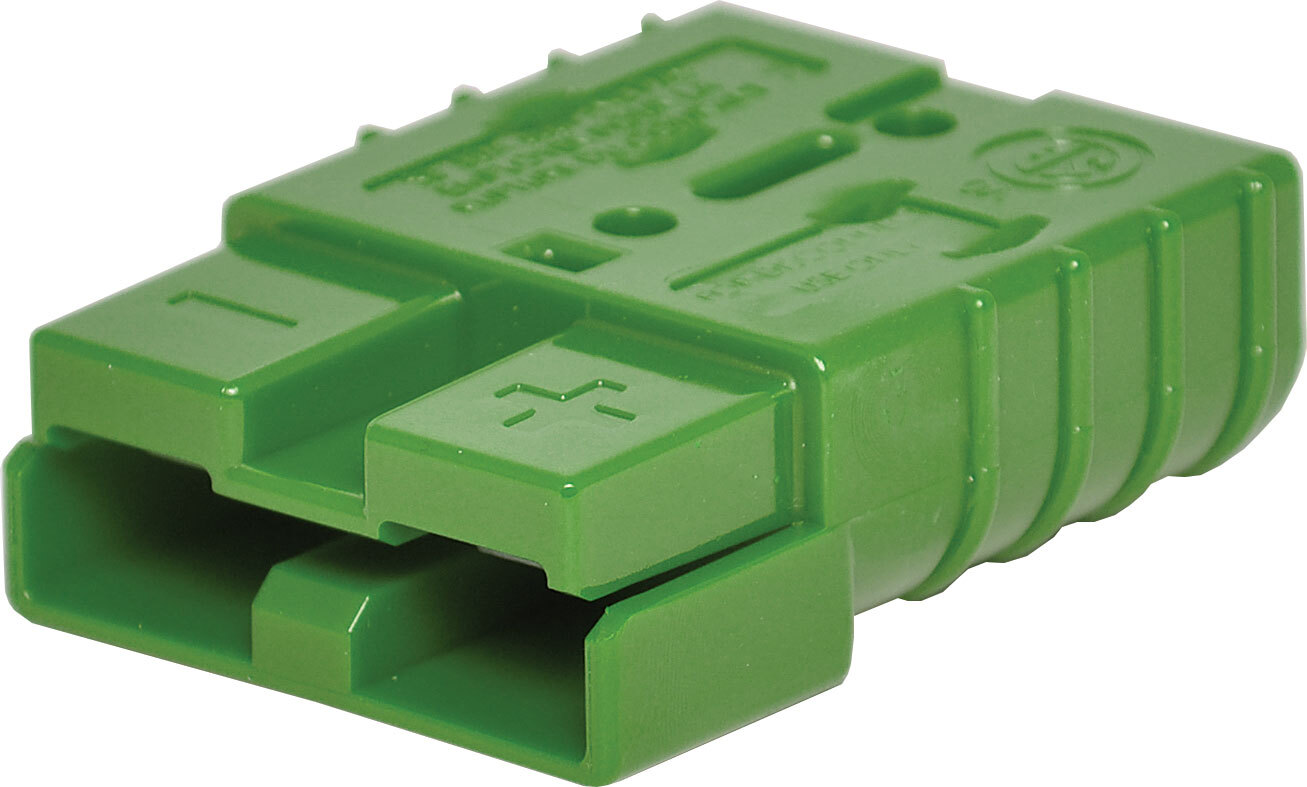

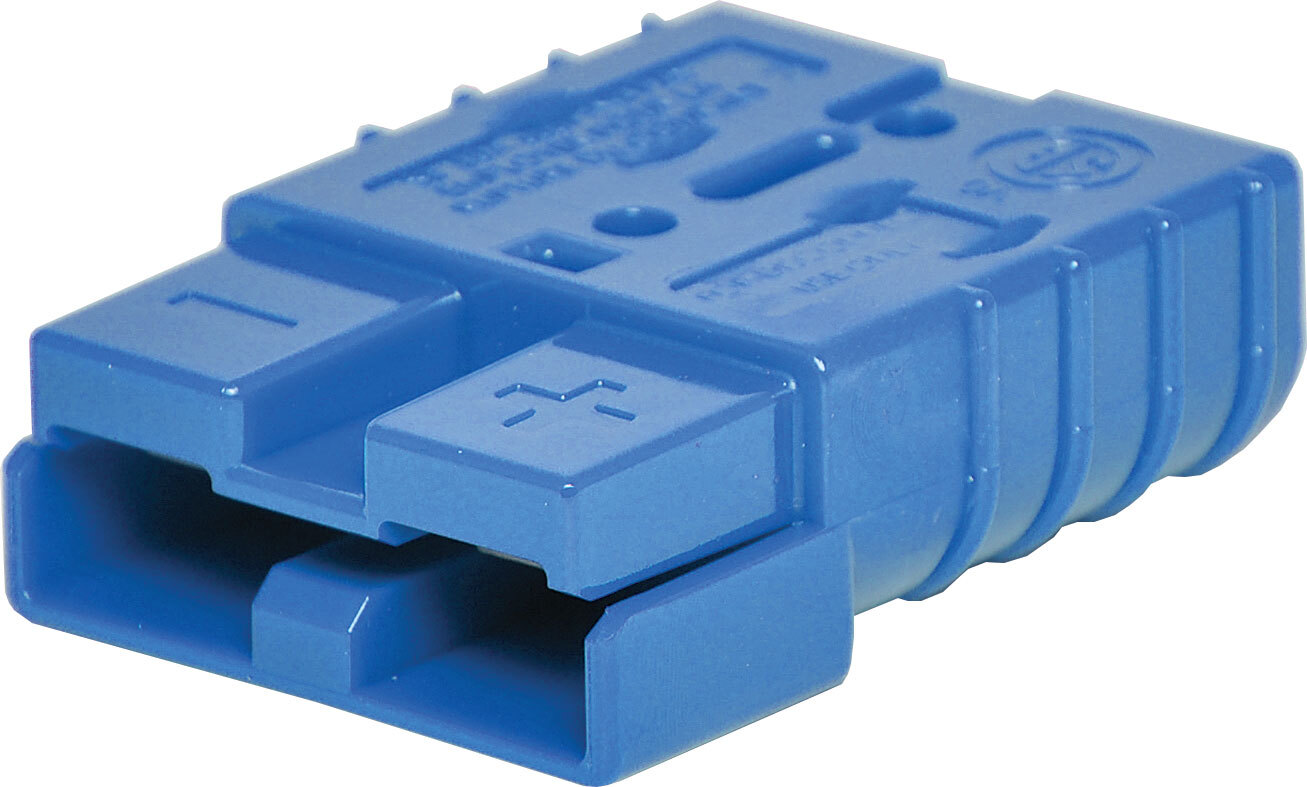

  • All colours available for different voltage applications
  • 350A 600V SB350 High Current DC Anderson Plug

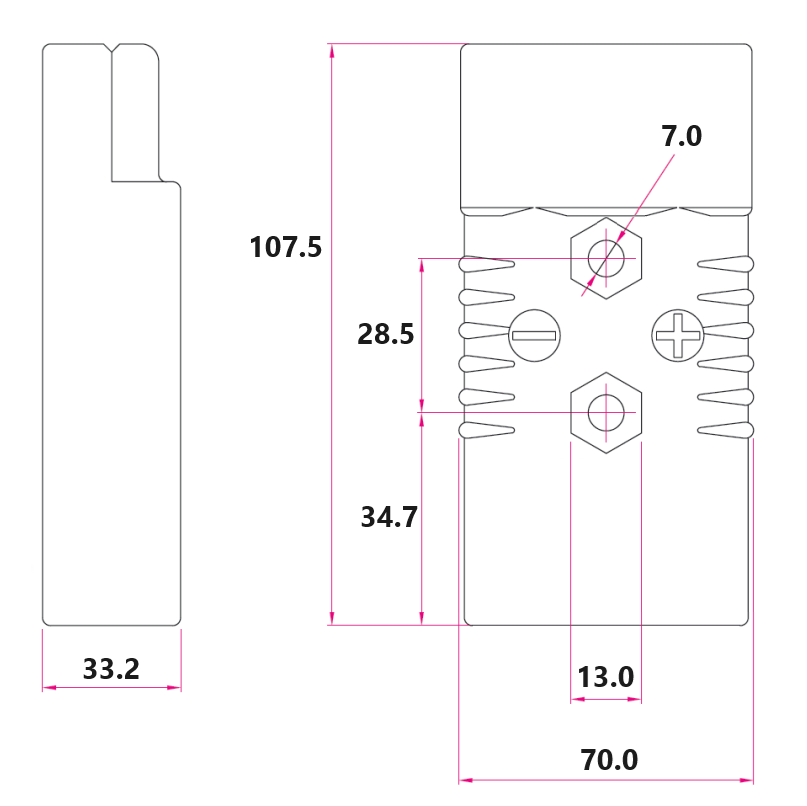

  • SB350 has external width of 70mm (compared to SB175 which has external width of 55mm)

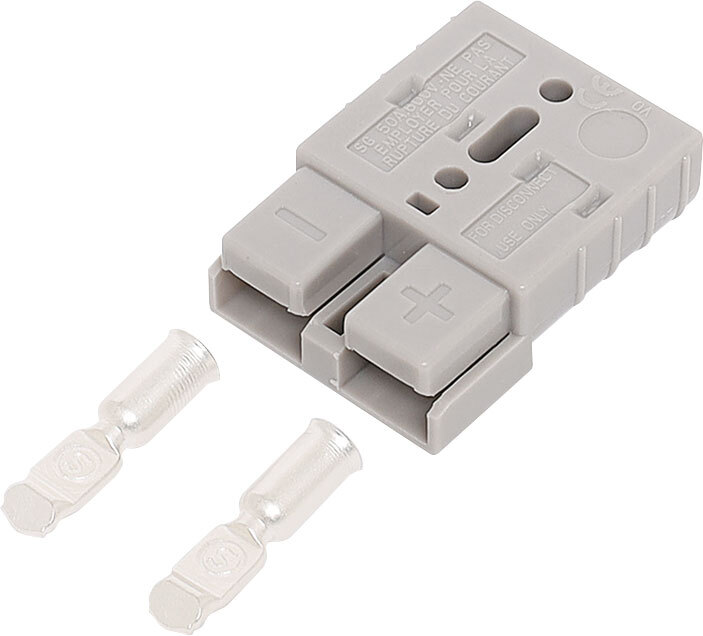

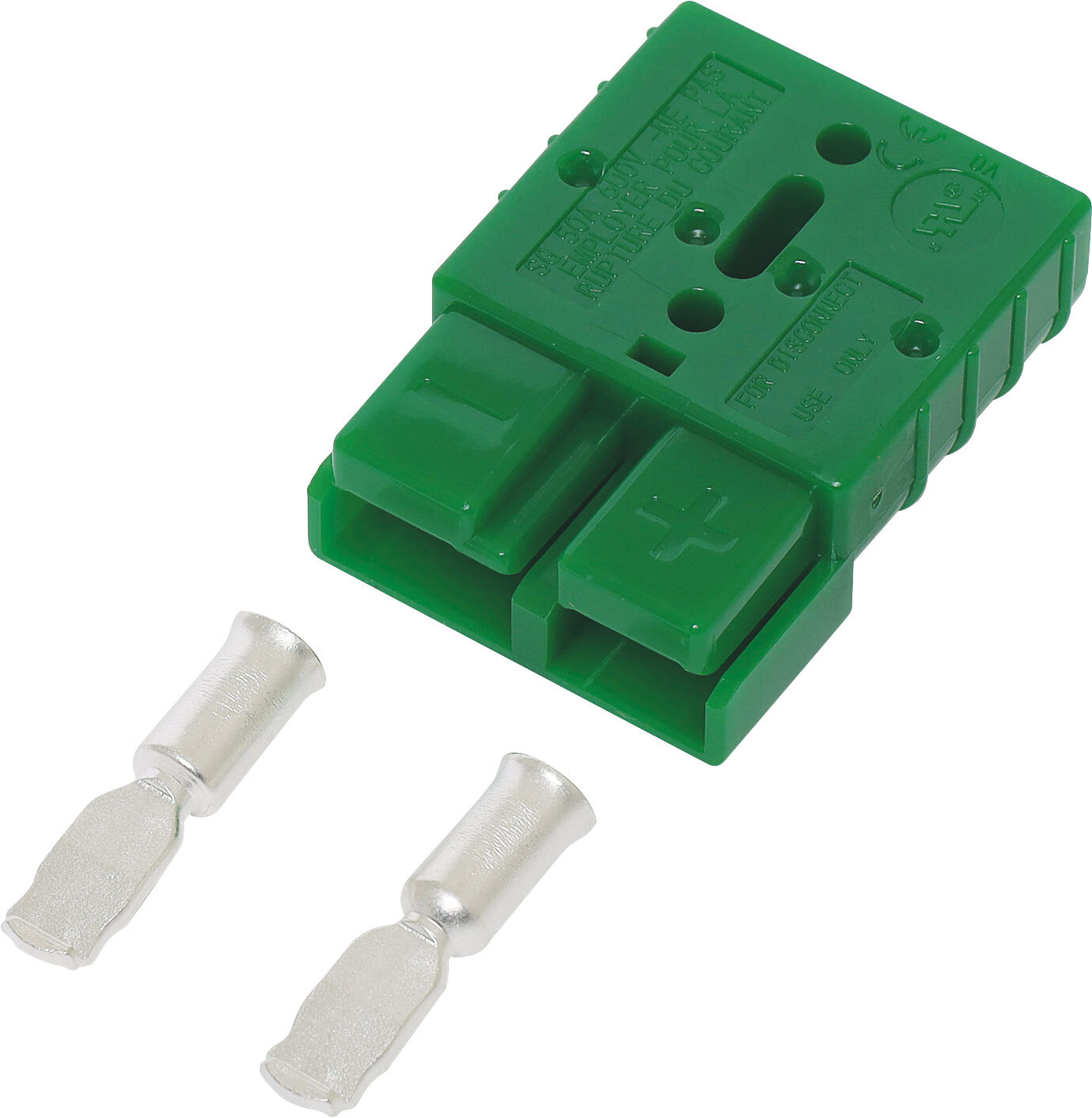

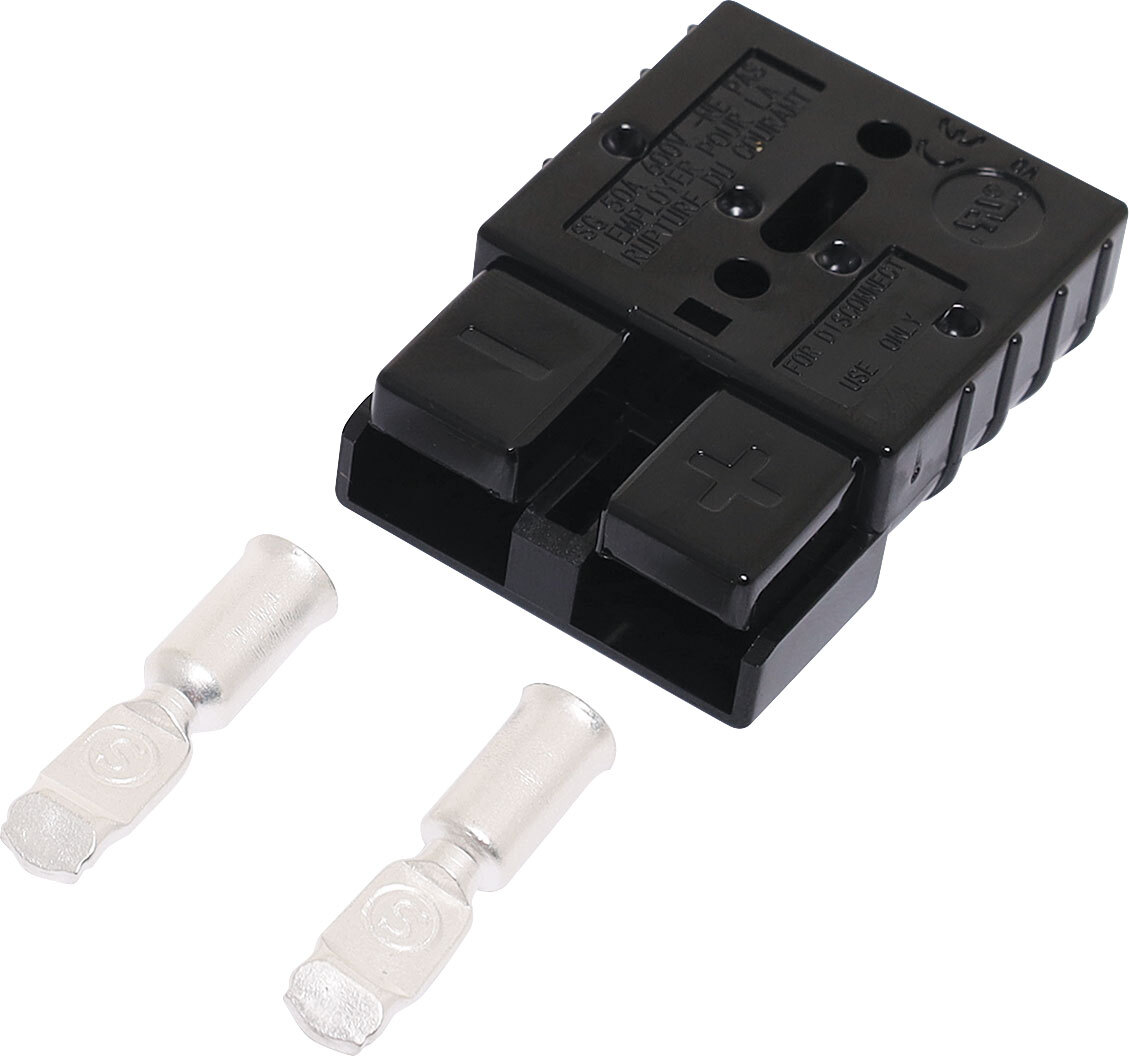

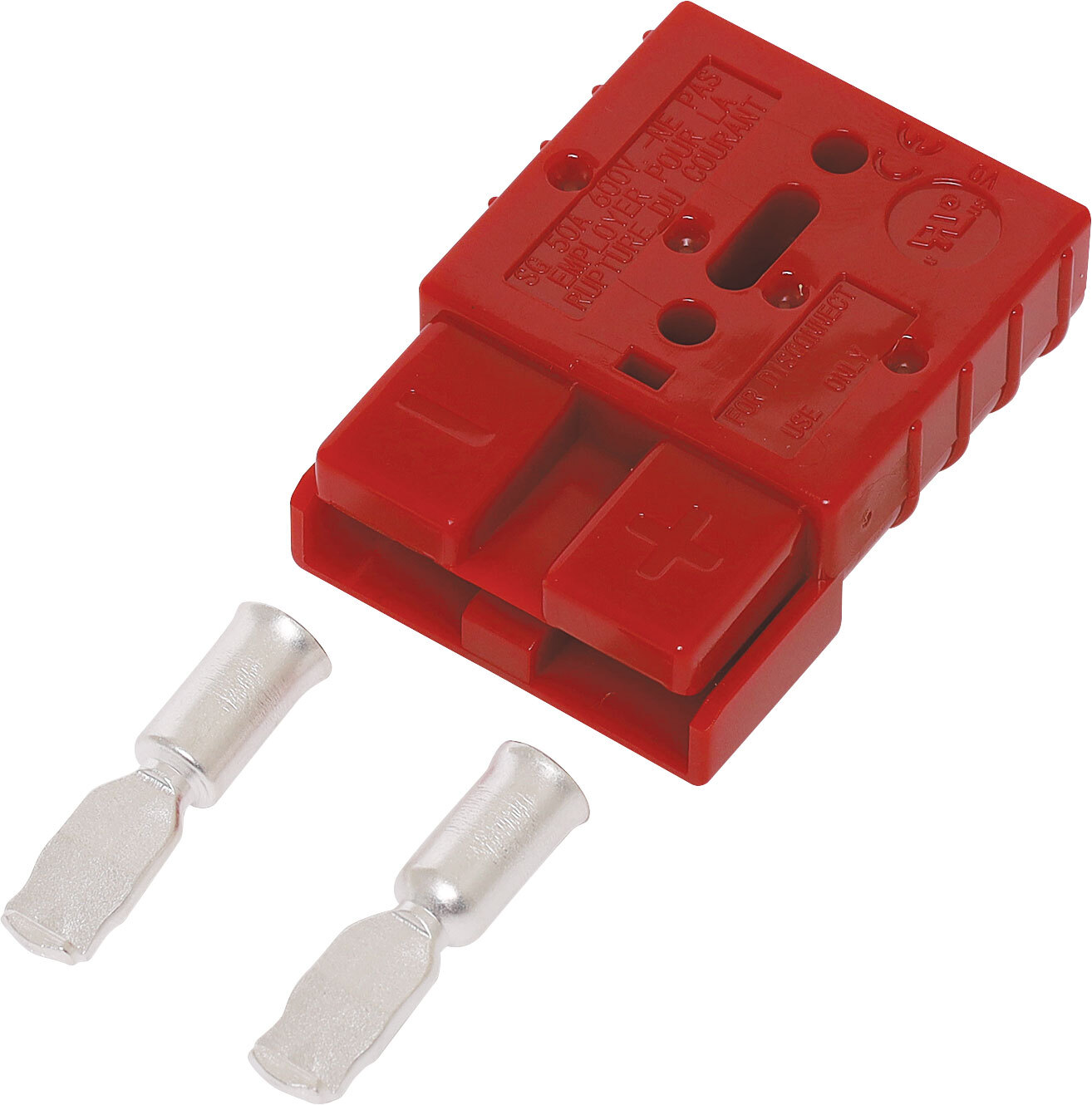

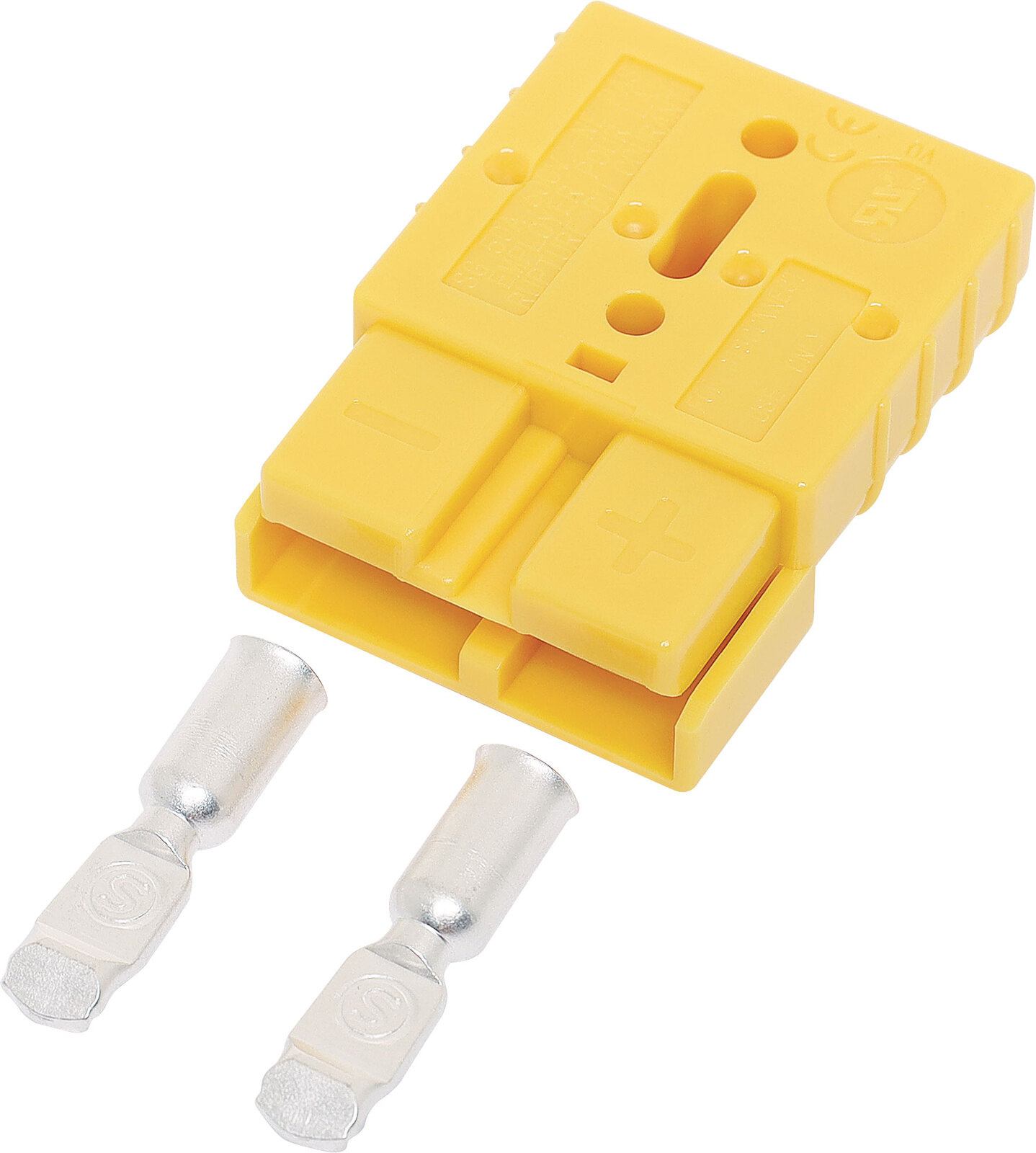

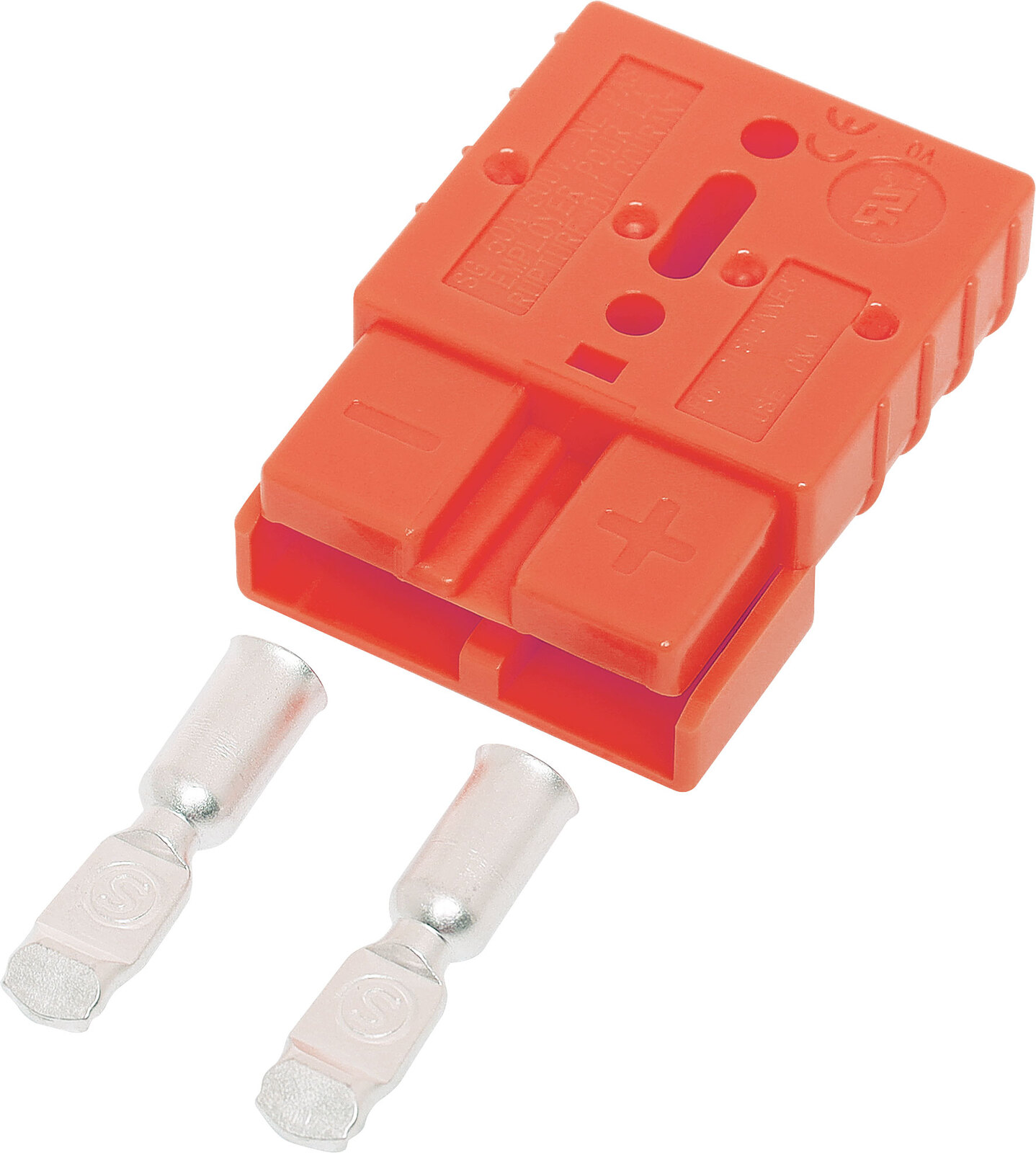

  • Complete with connector housing and two crimp lugs
  • Price includes installation on the DC Output cables of your Battery Charger

Design

Based off the design pioneered by Anderson in 1953, the two pole SB connectors set the standard for DC power distribution and battery connections. SB connectors feature a rugged one piece plastic housing using stainless steel springs to retain the contacts and create the “contact force” that provides extremely low resistance enabling greater electrical efficiency. The SB connectors are also genderless (flip one 180 degrees and they will mate to each other) reducing the customer’s bill of materials and providing greater economies of scale when purchasing. The SB series of connectors range in size from SB 50 to the SB 350. All the connectors are UL rated to 600 volts so the keys and colors are just identifiers to prevent accidents. Contacts are traditionally silver plated to minimize electrical resistance while offering supreme durability and reliability.

Compatibility

Anderson Plugs have colour coded, mechanically keyed housings designed to prevent both visually and physically cross-mating devices with different voltages.

Note: Each colour of Anderson Plug is recommended to be used exclusively for it’s designated voltage but in practice in Australia the Grey Anderson Plug is often used for any and all voltage ratings.

Please check what colour Anderson Plug your battery currently has and chose the same colour Anderson Plug, and the same width Anderson Plug (SB175 = 55mm wide & SB350 = 70mm wide), when ordering an Anderson Plug with your Battery Charger purchase.  If you have a Grey Anderson Plug already on your battery choose a Grey Anderson Plug for your charger regardless of your batteries voltage.

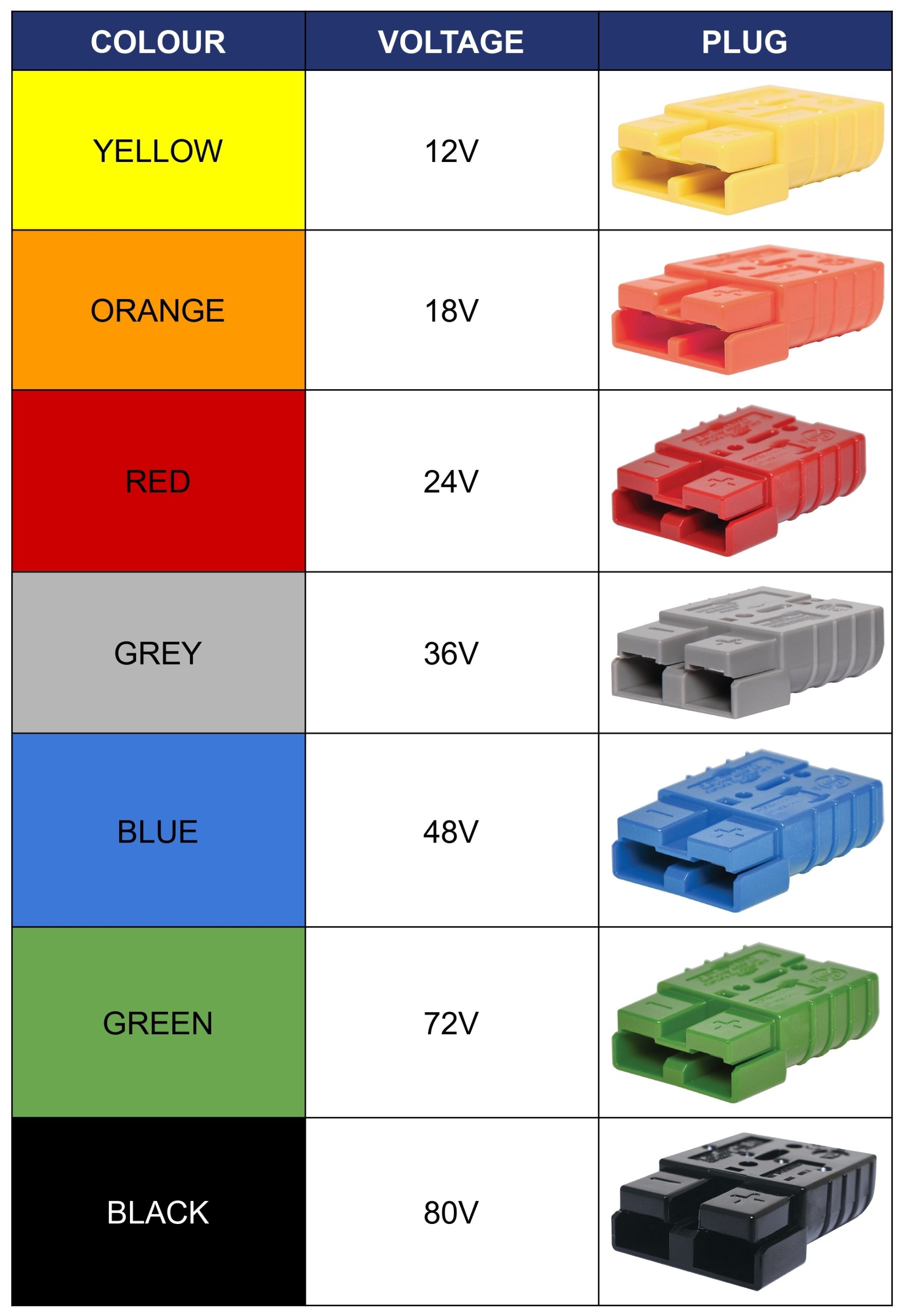

Anderson Plug Colour Yellow 12, Orange 18, Red 24, Grey 36, Blue 48, Green 72, Black 80 Volts

Anderson Plug Colours and their corresponding recommended voltage applications
